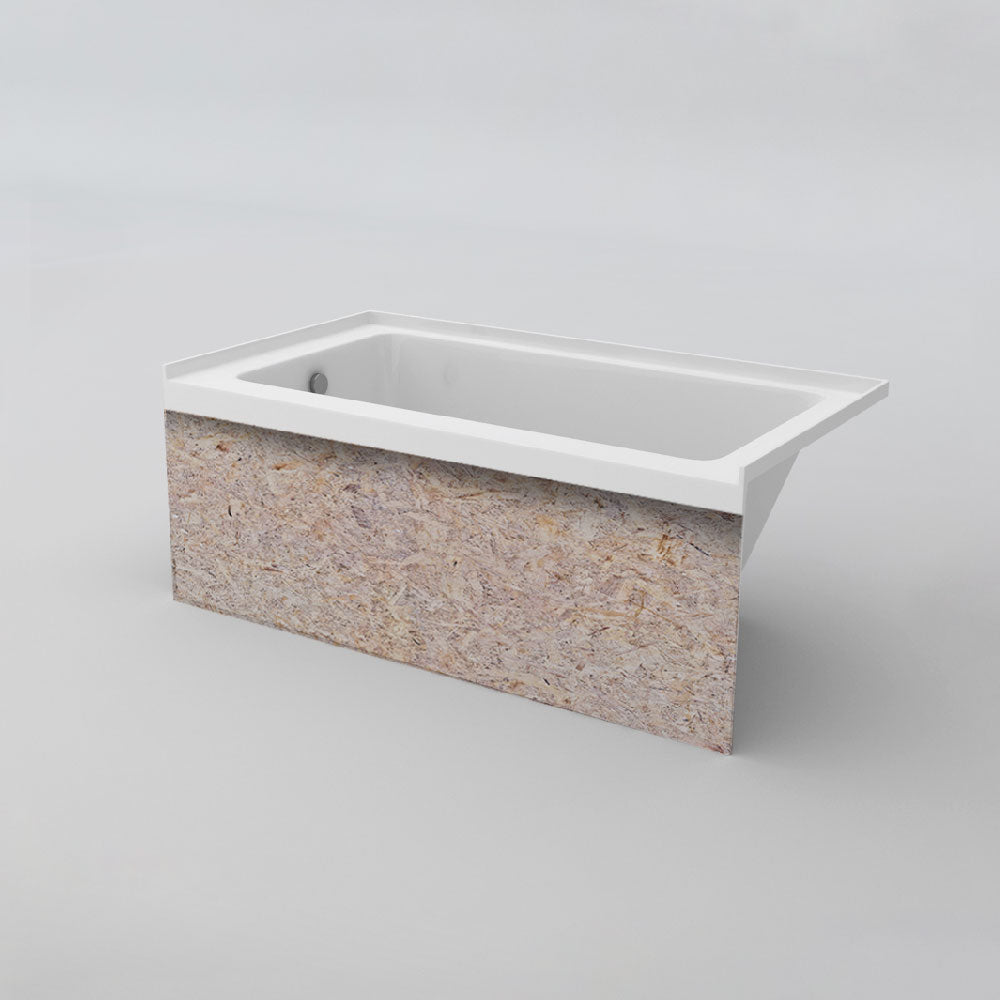

Acritec Clear Wood Panel 6030 Alcove Bathtub – 60 x 30 in. – Wood Apron for Tile Application

The Acritec Clear Wood Panel 6030 Alcove Bathtub is a 60 x 30 inch cast acrylic tub with fiberglass and wood reinforcement, designed for contractors and motivated retail buyers seeking a built-in tile-over front panel. This alcove tub features a factory-installed integral wood apron skirt for custom tile application, eliminating the standard acrylic skirt for a seamless finish. With an end drain configuration and leveling feet included, this 5-foot tub is built for reliable performance and easy installation.

Features

• 100% cast acrylic with fiberglass and wood reinforcement
• Factory-installed integral wood apron skirt for tile application over the front panel
• No standard acrylic skirt – tile the front for a built-in appearance
• End drain configuration (all alcove tubs)
• Leveling feet included for stable installation
• Above-floor rough-in compatible
• Upgradeable with lateral air, HydroMassage (6 or 8 jet), Chromatherapy, VIBE Sound System, and ComfortWarm
• Optional removable access panel Part# 41990 available

Specifications

• Dimensions: 59 7/8 in. L x 30 in. W x 20 5/8 in. H
• Immersion depth: 12 1/2 in.
• Material: 100% cast acrylic with fiberglass and wood reinforcement
• Color: White
• Flange type: Factory-installed integral wood apron skirt with single tiling flange
• Left-hand drain SKU: 41151.02010
• Right-hand drain SKU: 41152.02010

Fit & Compatibility

• Requires a minimum alcove rough-in of 60 x 30 in.
• Left-hand drain (41151.02010): drain on the left when standing outside the tub facing it
• Right-hand drain (41152.02010): drain on the right when standing outside the tub facing it
• Verify minimum doorway opening of 32 in. for delivery access
• Flange type: Factory-installed integral wood apron skirt with single tiling flange

Installation Requirements

• Leveling feet must contact the subfloor evenly on all points before securing
• Optional removable access panel (Part# 41990) recommended if jetting upgrades are installed
• Acrylic surface: use non-abrasive cleaners only to avoid scratching
• No electrical required for standard tub; lateral air or HydroMassage upgrades require a dedicated 15 amp GFI breaker

Shipping

• Ships LTL freight from Langley, BC
• Wooden crating required — boxing fee applies
• Liftgate and residential delivery surcharges apply where required
• Freight quoted per order — contact us before purchasing

Warranty & Returns

• Residential: 10-year limited warranty against manufacturer's defects from date of purchase
• Applies to original purchaser with proof of purchase from an authorized Acritec dealer
• Acritec will repair, replace, or refund at their discretion up to the original purchase price — does not include transport, removal, or reinstallation costs
• Not covered: shipping or handling damage, misuse, improper installation, alterations, freezing, chemical corrosion, improper water chemistry, normal wear and tear, colour fading
• Inspect on delivery — all freight damage must be reported to the carrier immediately; installing a damaged product voids the warranty
• Manufacturer's defects must be reported to Acritec before installation
• To submit a claim: email RGA@acritec.com with proof of purchase, model number, description of defect, and photos
• Returns: These are large freight items shipped to order — no returns for change of mind or incompatibility with existing space. Contact us before purchasing if you have questions about fit.

Documents

• Specification Sheet
• Alcove Installation Guide
