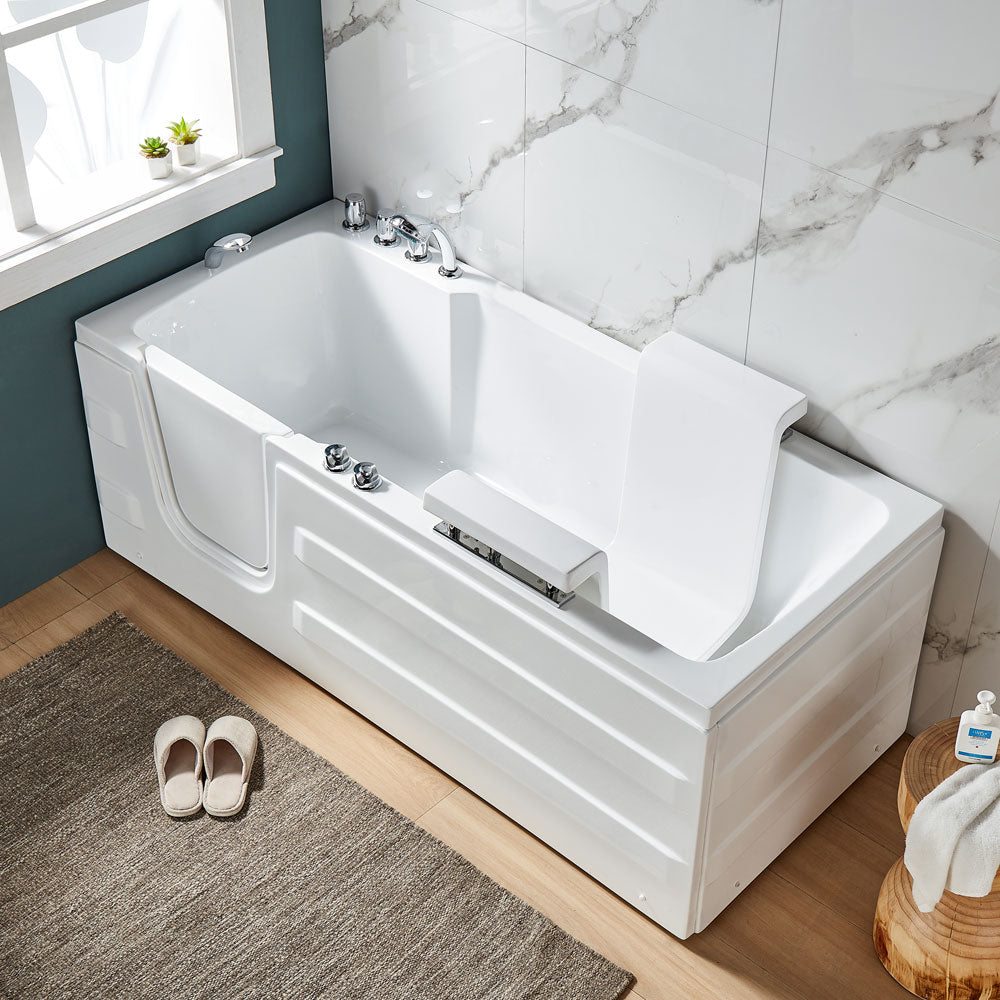

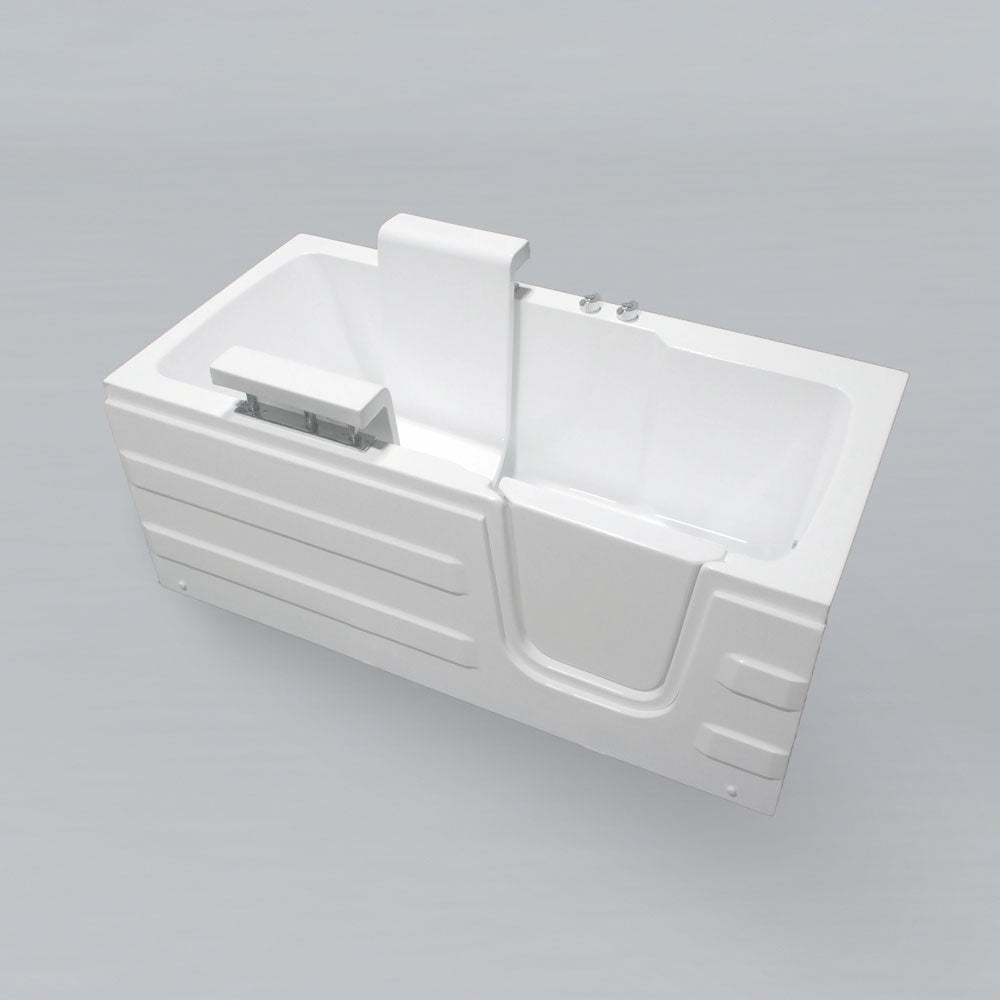

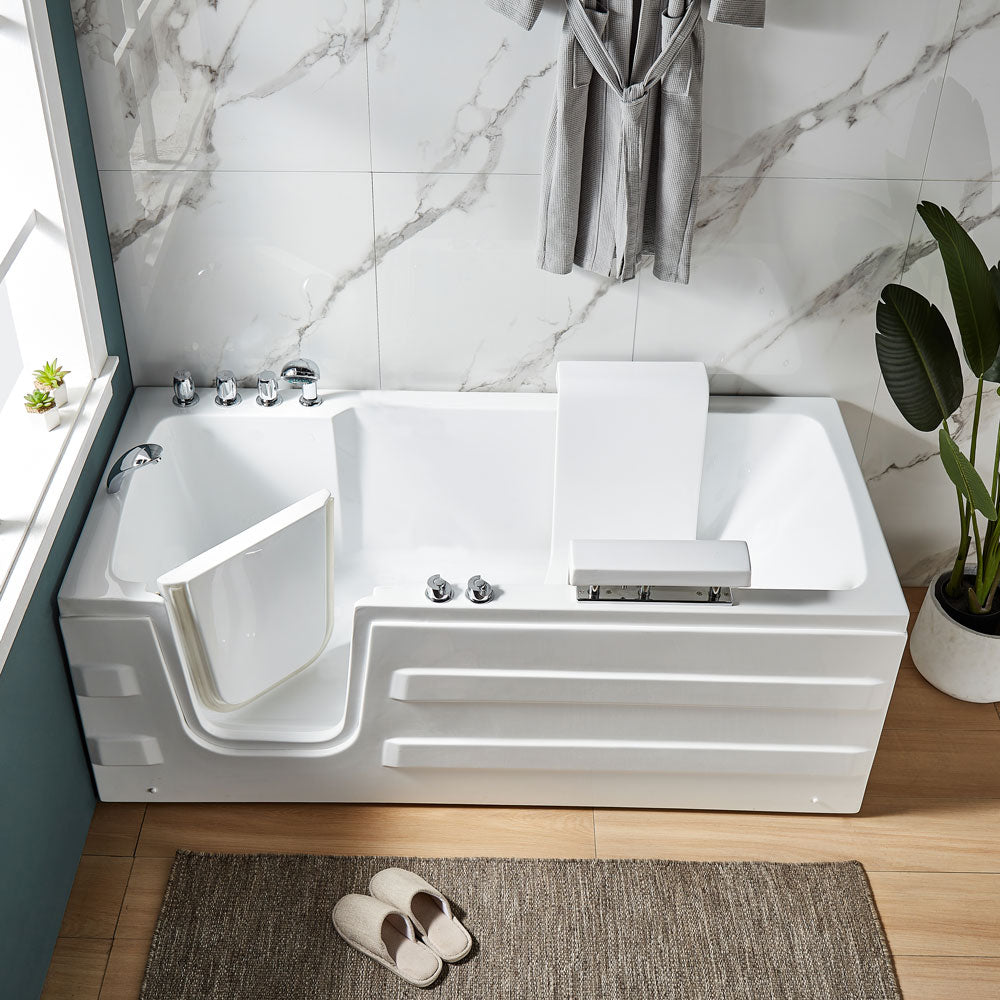

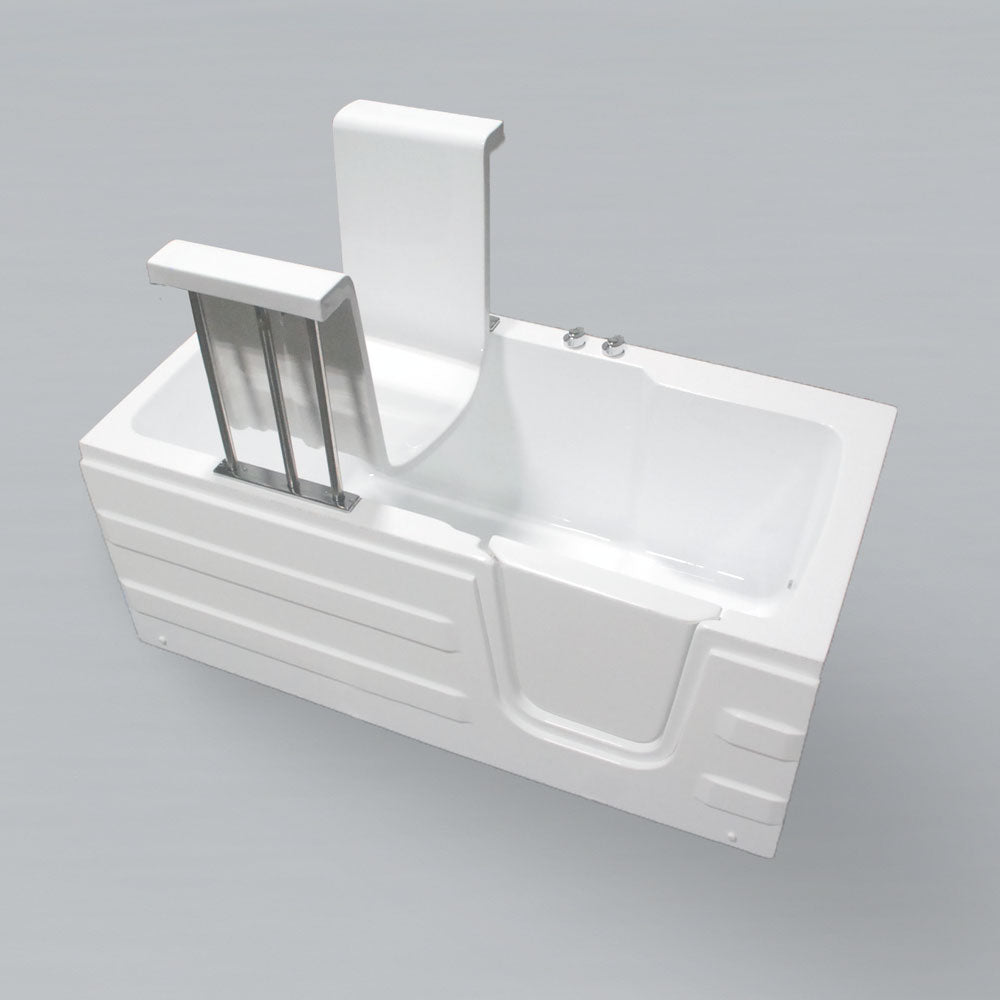

Acritec Integrity Walk-In Bathtub – 61" Hydraulic Lift Seat 440 lb

The Acritec Integrity is a premium walk-in bathtub featuring an electric hydraulic lift seat for maximum accessibility. The motorized seat raises and lowers the bather smoothly with a two-button control, with a built-in backup battery for emergency use. Rated to 440 lbs (200 kg). Available in left-hand and right-hand drain configurations.

Features

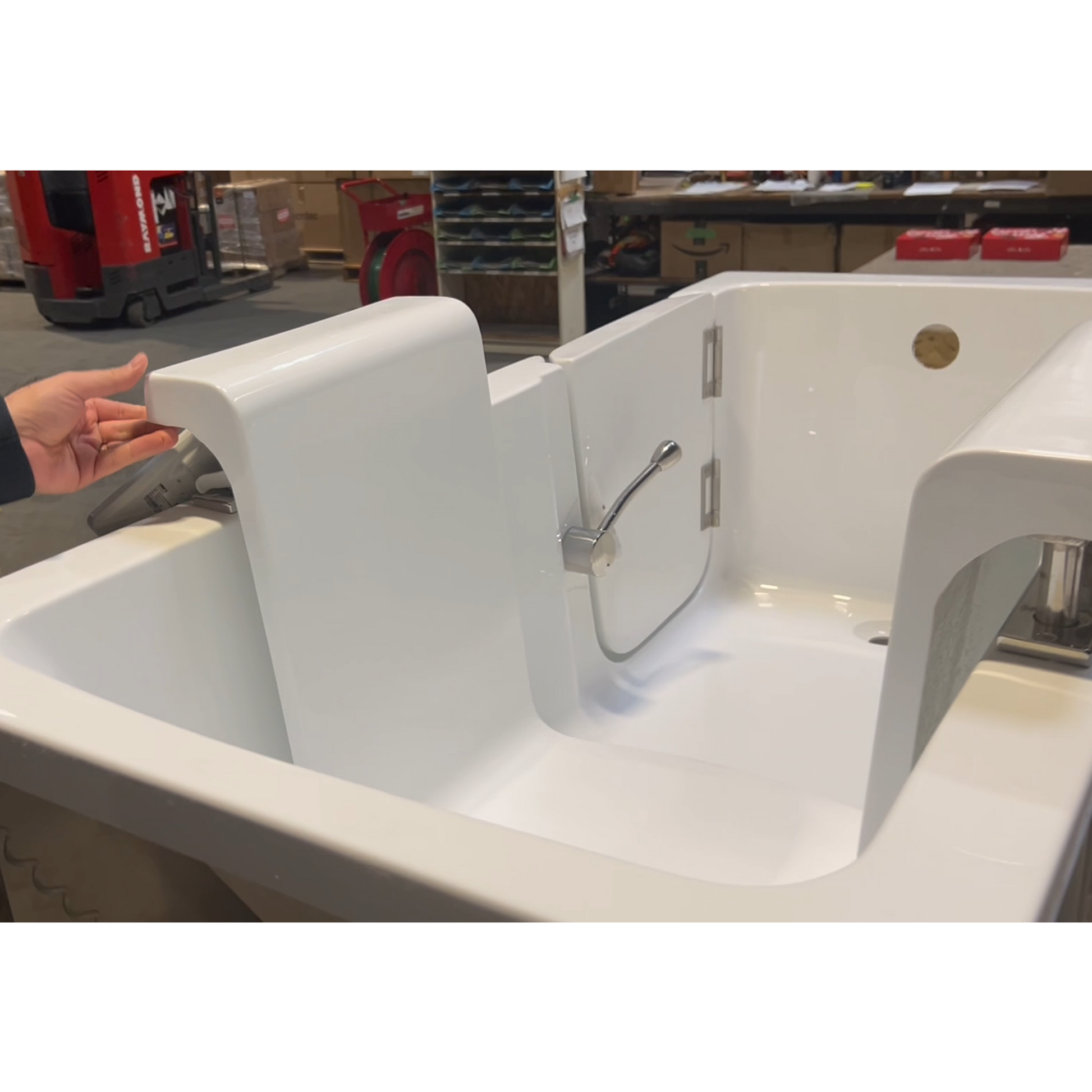

• Electric hydraulic lift seat — 440 lb (200 kg) rated capacity
• Two-button control for smooth up and down seat motion

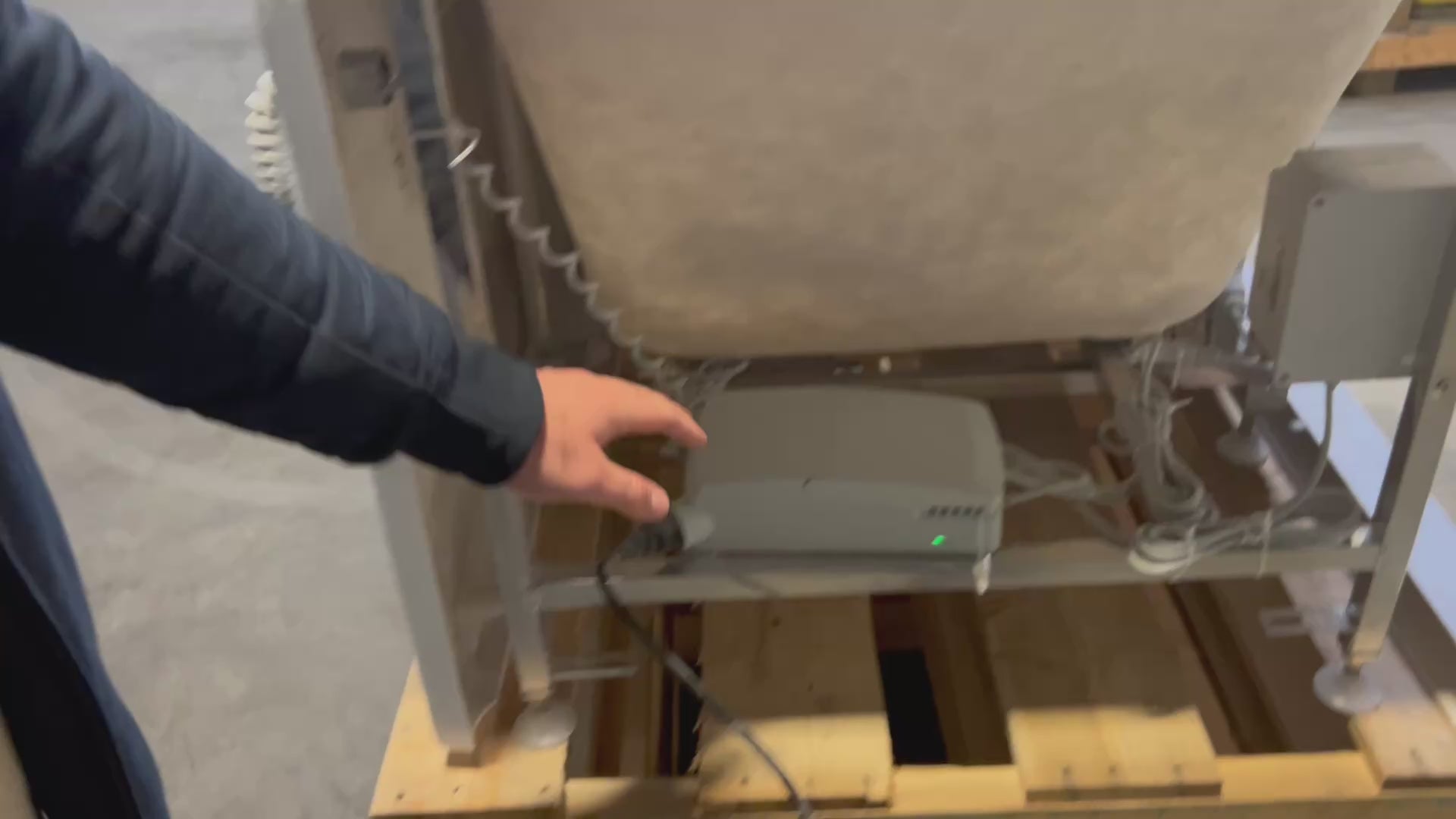

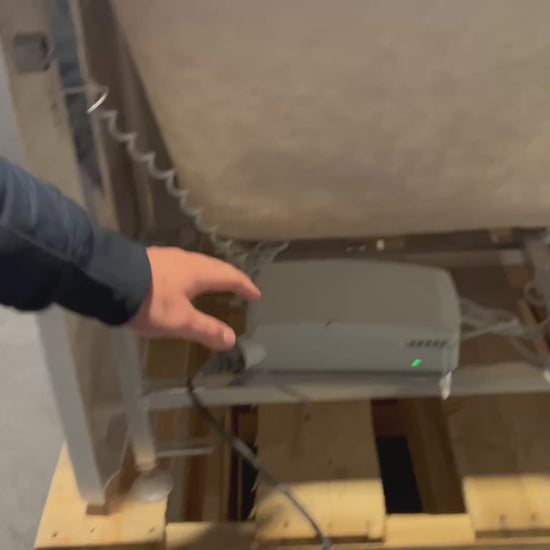

• Built-in backup battery for emergency seat operation
• Inward swinging door
• Acrylic construction with fiberglass reinforcement and stainless steel frame
• Drain included

Specifications

• Product #: LH 71061 | RH 71062
• Dimensions: 61" L × 29⅞" W × 24" H
• Immersion Depth: 14"
• Drain Rough-in Height: 4⅝" from finished floor
• Water Capacity: Approximately 62 US gallons (reference only)
• Seat Lift Capacity: 440 lbs (200 kg)
• Material: Acrylic with fiberglass reinforcement and stainless steel frame
• Installation Type: Walk-in / Alcove

Fit & Compatibility

• Minimum alcove rough-in: 61" L × 29⅞" W
• Door swing: Inward — no outward clearance required in front of tub
• Drain location: Left-hand (71061) or Right-hand (71062) — select the variant matching your existing drain side
• Drain rough-in height: 4⅝" from finished floor — verify existing drain rough-in height before ordering
• Low-profile 24" height — verify clearance for hydraulic components and drain rough-in below tub
• Confirm bathroom doorway width can accommodate 29⅞" tub on delivery

Installation Requirements

• Drain: Drain included — drain rough-in height must be 4⅝" from finished floor
• Electrical: Dedicated electrical circuit required for hydraulic lift seat motor — must be installed by a licensed electrician in accordance with local codes
• Backup battery built-in — allows seat operation during power interruption

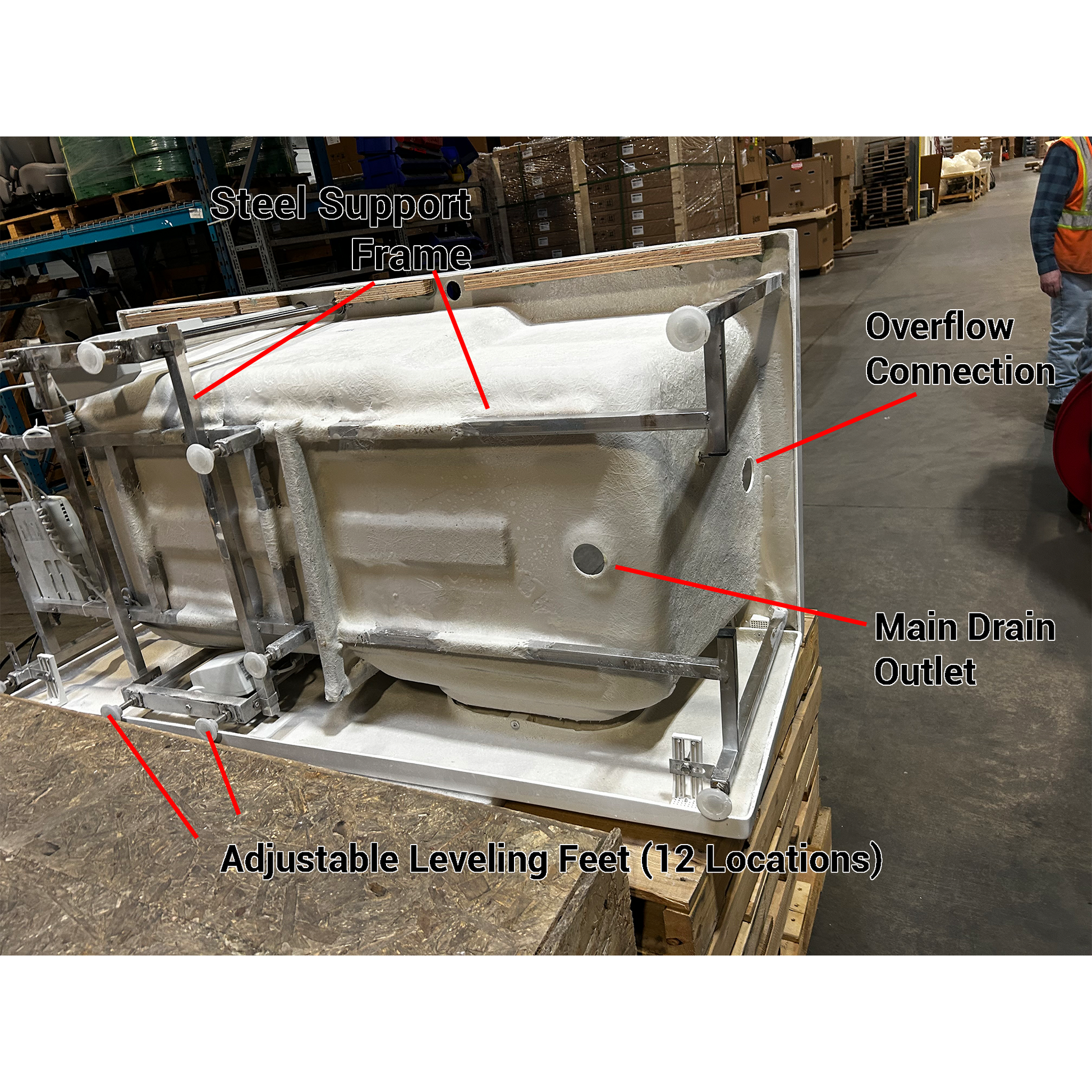

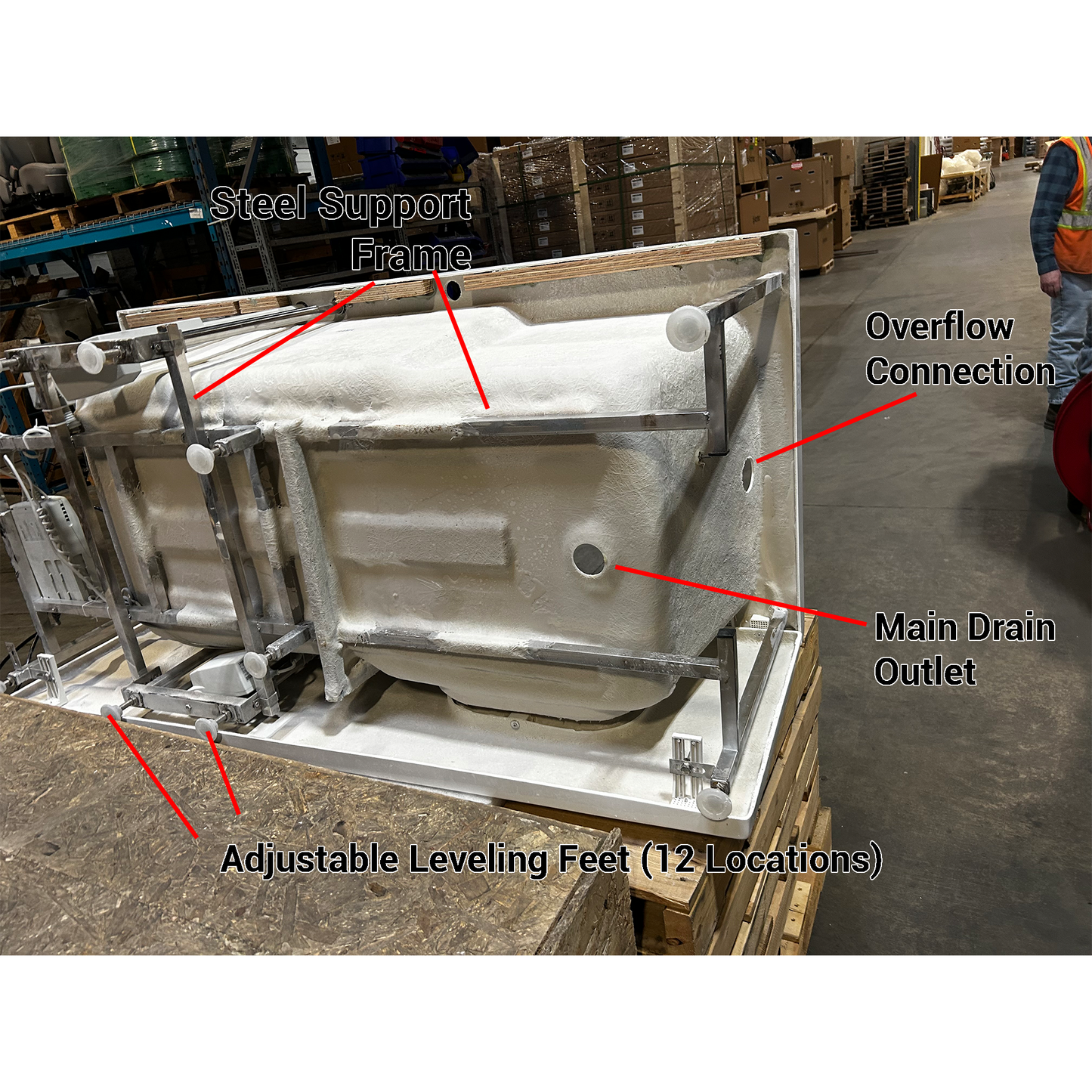

• Adjustable leveling feet — tub must rest level on all feet for proper drainage and door seal
• Acrylic surface — avoid abrasive cleaners to maintain finish

Shipping

• Ships LTL freight from Langley, BC
• Wooden crating required — boxing fee applies
• Liftgate and residential delivery surcharges apply where required
• Freight quoted per order — contact us before purchasing

Warranty & Returns

• Residential: 2-year limited warranty against manufacturer's defects from date of purchase
• Commercial: 1-year limited warranty against manufacturer's defects from date of purchase
• Applies to original purchaser with proof of purchase from an authorized Acritec dealer
• Acritec will repair, replace, or refund at their discretion up to the original purchase price — does not include transport, removal, or reinstallation costs
• Not covered: shipping or handling damage, misuse, improper installation, alterations, freezing, chemical corrosion, improper water chemistry, normal wear and tear, colour fading
• Inspect on delivery — all freight damage must be reported to the carrier immediately; installing a damaged product voids the warranty
• Manufacturer's defects must be reported to Acritec before installation
• To submit a claim: email RGA@acritec.com with proof of purchase, model number, description of defect, and photos
• Returns: These are large freight items shipped to order — no returns for change of mind or incompatibility with existing space. Contact us before purchasing if you have questions about fit.

Documents

• Specification Sheet
