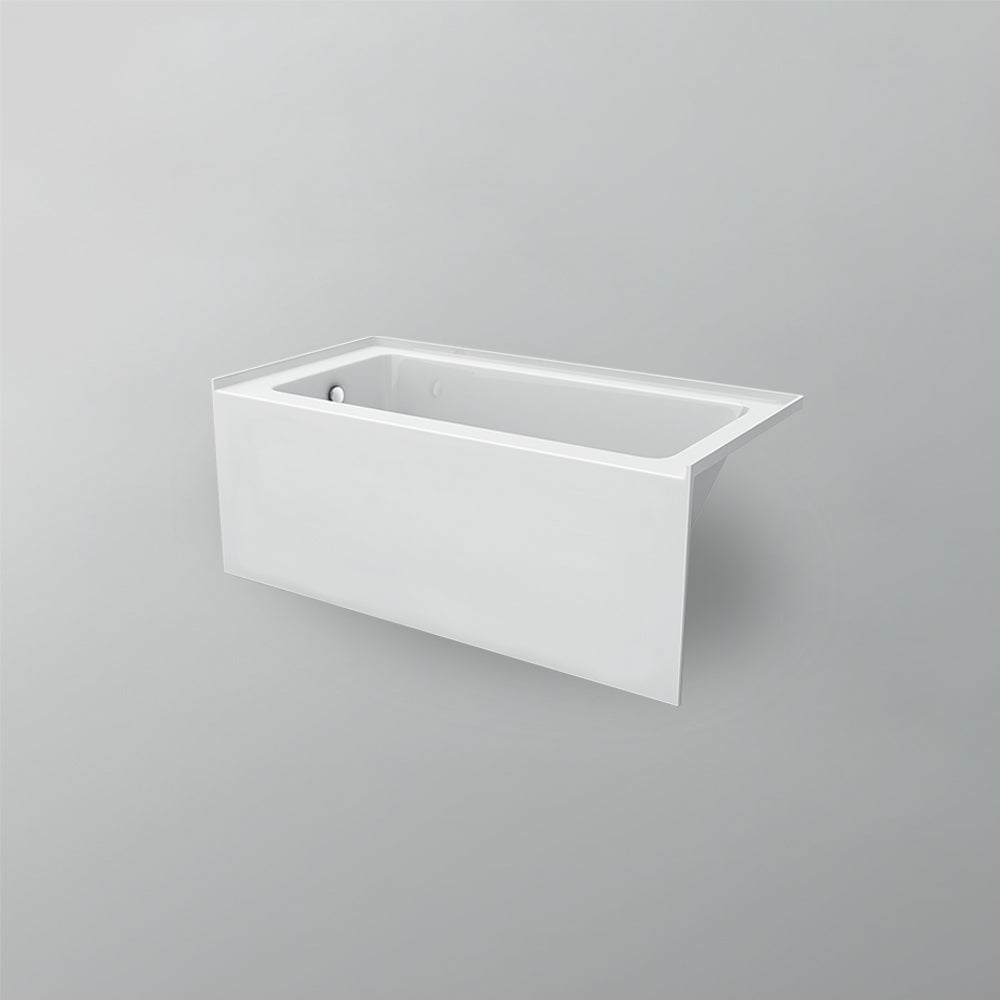

Acritec Simplicity Pure 6630 Alcove Bathtub – 66 x 30 in. – 5.5 ft. Deep 16 in. Soaker

The Acritec Simplicity Pure 6630 Alcove Bathtub is a 5.5 ft. deep soaker designed for contractors and motivated retail buyers seeking a deep immersion bath. This 66 x 30 in. alcove tub offers a 16 in. immersion depth, one of the deepest in the lineup, with a lightly textured anti-slip bottom for safety. Made from 100% cast acrylic with fiberglass and wood reinforcement, it provides durability and thermal retention for a premium bathing experience.

Features

• 66 in. L x 30 in. W x 22 in. H alcove bathtub with a 16 in. immersion depth
• Lightly textured anti-slip bottom for added safety
• Single tiling flange for easy installation
• End drain configuration (left-hand drain SKU 41404 or right-hand drain SKU 41405)
• Plain/undecorated skirt for a clean, professional look
• Leveling feet included for stable installation
• Can be upgraded with lateral air, HydroMassage (6 or 8 jet), Chromatherapy, VIBE Sound System, and ComfortWarm
• Optional removable access panel Part# 41990 available for jetting upgrades

Specifications

• Material: 100% cast acrylic with fiberglass and wood reinforcement
• Color: White
• Dimensions: 65 7/8 in. L x 30 in. W x 22 in. H
• Immersion depth: 16 in.
• Length: 5.5 ft.
• Drain location: End drain (left-hand or right-hand)
• Flange type: Single tiling flange
• SKUs: 41404 (left-hand drain), 41405 (right-hand drain)

Fit & Compatibility

• Requires a minimum alcove rough-in of 66 in. x 30 in.
• Left-hand drain (41404): drain on the left when standing outside the tub facing it
• Right-hand drain (41405): drain on the right when standing outside the tub facing it
• Verify minimum doorway opening of 32 in. for delivery access
• Flange type: Single tiling flange

Installation Requirements

• Leveling feet must contact the subfloor evenly on all points before securing
• Optional removable access panel (Part# 41990) recommended if jetting upgrades are installed
• Acrylic surface: use non-abrasive cleaners only to avoid scratching
• No electrical required for standard tub; lateral air or HydroMassage upgrades require a dedicated 15 amp GFI breaker

Shipping

• Ships LTL freight from Langley, BC
• Wooden crating required — boxing fee applies
• Liftgate and residential delivery surcharges apply where required
• Freight quoted per order — contact us before purchasing

Warranty & Returns

• Residential: 10-year limited warranty against manufacturer's defects from date of purchase
• Applies to original purchaser with proof of purchase from an authorized Acritec dealer
• Acritec will repair, replace, or refund at their discretion up to the original purchase price — does not include transport, removal, or reinstallation costs
• Not covered: shipping or handling damage, misuse, improper installation, alterations, freezing, chemical corrosion, improper water chemistry, normal wear and tear, colour fading
• Inspect on delivery — all freight damage must be reported to the carrier immediately; installing a damaged product voids the warranty
• Manufacturer's defects must be reported to Acritec before installation
• To submit a claim: email RGA@acritec.com with proof of purchase, model number, description of defect, and photos
• Returns: These are large freight items shipped to order — no returns for change of mind or incompatibility with existing space. Contact us before purchasing if you have questions about fit.

Documents

• Specification Sheet
• Alcove Installation Guide
