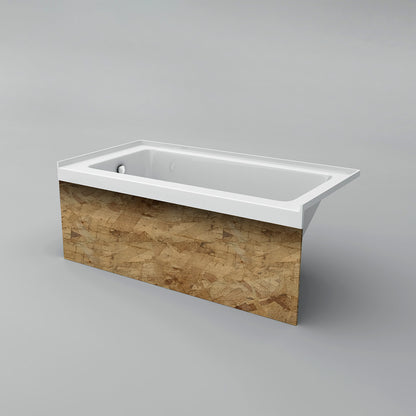

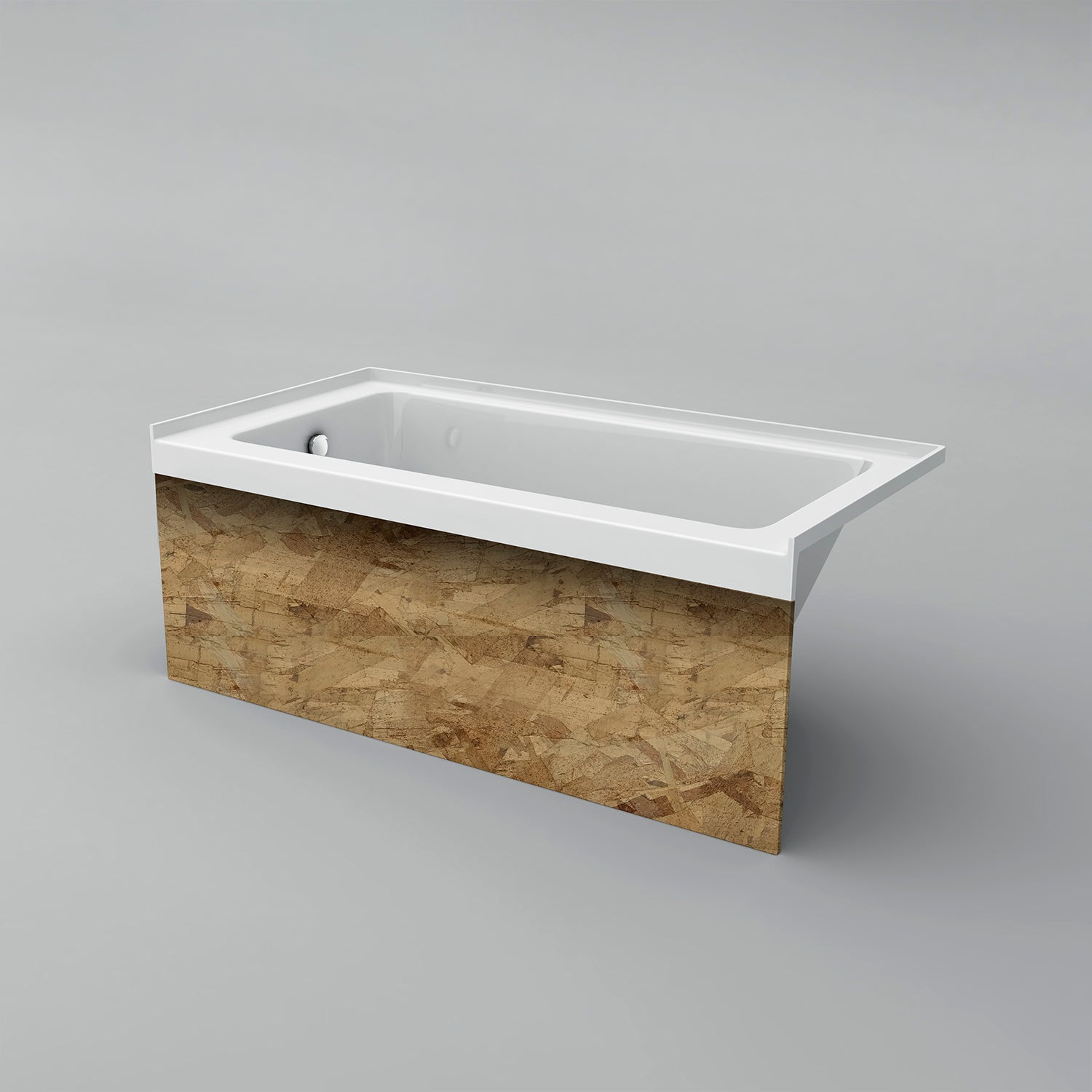

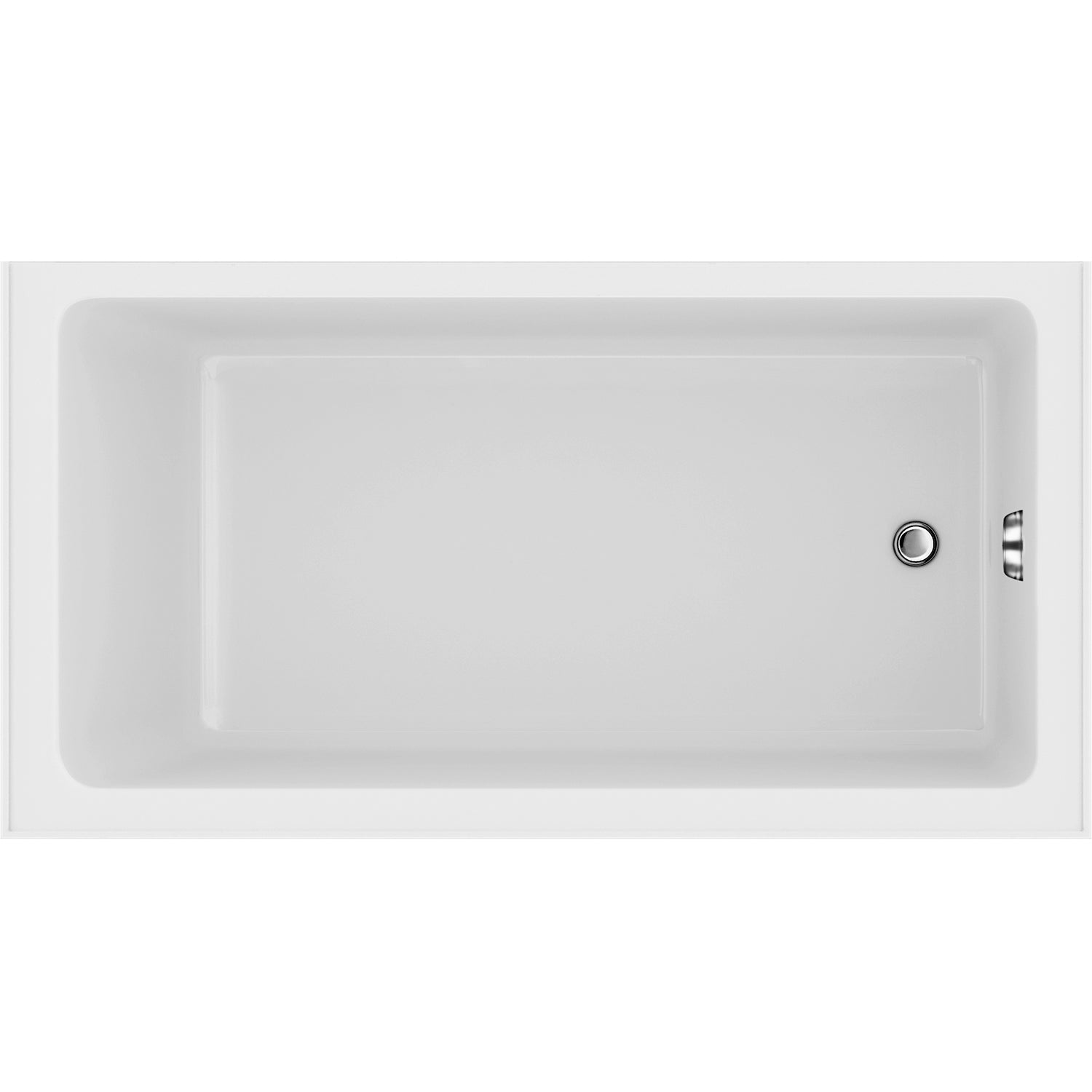

Acritec Simplicity Wood Panel 6032 Alcove Bathtub – 60 x 32 in. – Wood Apron for Tile

The Acritec Simplicity Wood Panel 6032 Alcove Bathtub is a 60 x 32 inch cast acrylic tub with fiberglass and wood reinforcement, designed for contractors and motivated retail buyers. This model features a factory-installed integral wood apron for tile application over the front panel, making it ideal for a seamless tile surround. The 14 5/8 inch immersion depth provides a comfortable soaking experience, and the end drain configuration simplifies plumbing.

Features

• 100% cast acrylic with fiberglass and wood reinforcement
• Factory-installed integral wood apron skirt for tile application over the front panel
• Single tiling flange for a clean, waterproof installation
• End drain configuration (all alcove tubs)
• Above-floor rough-in compatible
• Leveling feet included for stable, even installation
• Can be upgraded with lateral air, HydroMassage (6 or 8 jet), Chromatherapy, VIBE Sound System, and ComfortWarm
• Optional removable access panel Part# 41990 available

Specifications

• Dimensions: 59 7/8 in. L x 32 in. W x 22 1/2 in. H
• Immersion depth: 14 5/8 in.
• Material: 100% cast acrylic with fiberglass and wood reinforcement
• Color: White
• SKU (Left-hand drain): 41399.02010
• SKU (Right-hand drain): 41400.02010

Fit & Compatibility

• Requires a minimum alcove rough-in of 60 x 32 in.
• Left-hand drain (41399.02010): drain on the left when standing outside the tub facing it
• Right-hand drain (41400.02010): drain on the right when standing outside the tub facing it
• Verify minimum doorway opening of 32 in. for delivery access
• Flange type: Factory-installed integral wood apron skirt with single tiling flange

Installation Requirements

• Leveling feet must contact the subfloor evenly on all points before securing
• Optional removable access panel (Part# 41990) recommended if jetting upgrades are installed
• Acrylic surface: use non-abrasive cleaners only to avoid scratching
• No electrical required for standard tub; lateral air or HydroMassage upgrades require a dedicated 15 amp GFI breaker

Shipping

• Ships LTL freight from Langley, BC
• Wooden crating required — boxing fee applies
• Liftgate and residential delivery surcharges apply where required
• Freight quoted per order — contact us before purchasing

Warranty & Returns

• Residential: 10-year limited warranty against manufacturer's defects from date of purchase
• Applies to original purchaser with proof of purchase from an authorized Acritec dealer
• Acritec will repair, replace, or refund at their discretion up to the original purchase price — does not include transport, removal, or reinstallation costs
• Not covered: shipping or handling damage, misuse, improper installation, alterations, freezing, chemical corrosion, improper water chemistry, normal wear and tear, colour fading
• Inspect on delivery — all freight damage must be reported to the carrier immediately; installing a damaged product voids the warranty
• Manufacturer's defects must be reported to Acritec before installation
• To submit a claim: email RGA@acritec.com with proof of purchase, model number, description of defect, and photos
• Returns: These are large freight items shipped to order — no returns for change of mind or incompatibility with existing space. Contact us before purchasing if you have questions about fit.

Documents

• Specification Sheet
• Alcove Installation Guide
