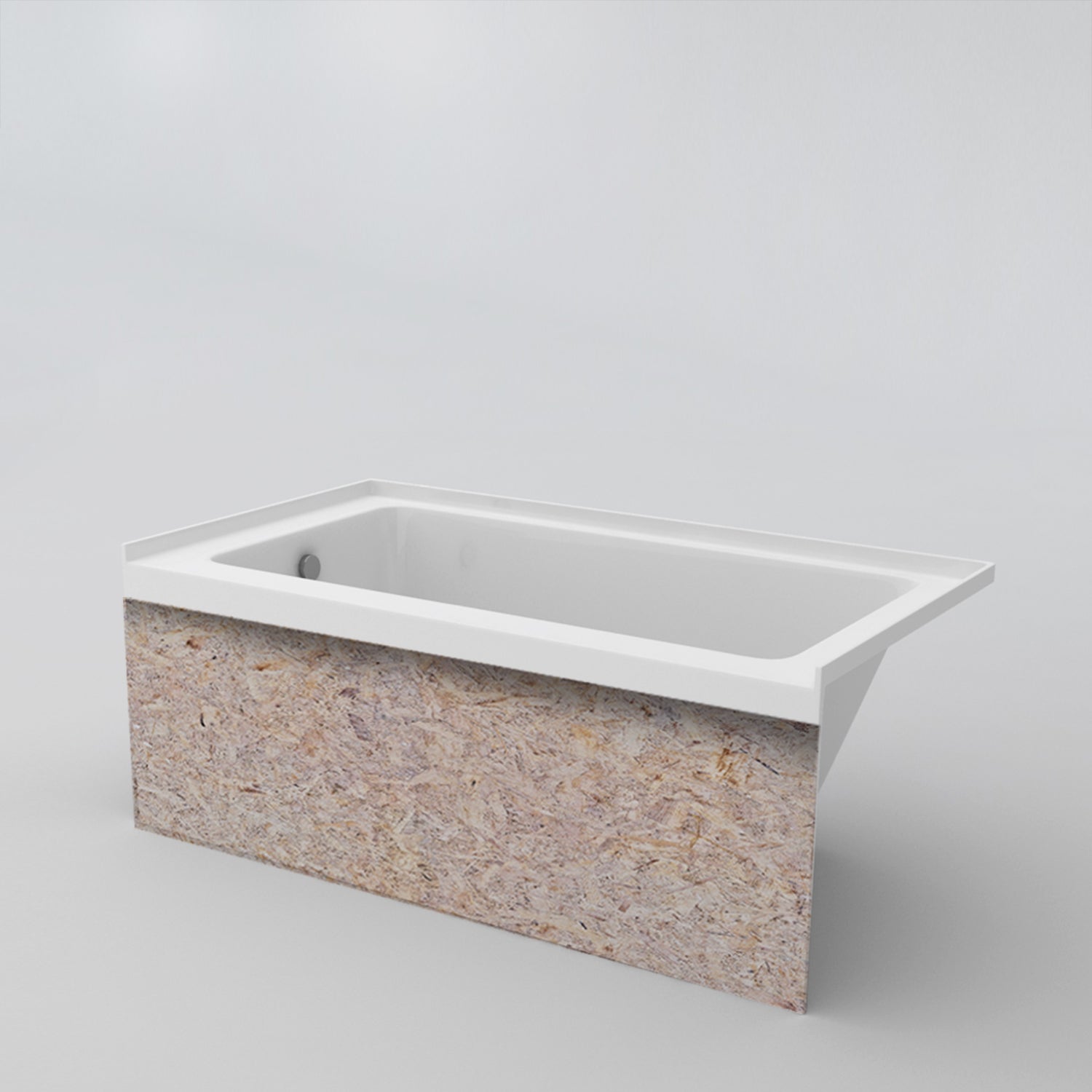

Acritec Simplicity Wood Panel 7234 Alcove Bathtub – 72 x 34 in. – 6 ft. Wide Wood Apron for Tile

The Acritec Simplicity Wood Panel 7234 Alcove Bathtub is a 6 ft. wide, 72 x 34 in. tub built for tile integration. This model features a factory-installed integral wood apron skirt, allowing tile to be applied directly over the front panel for a seamless, built-in look. Constructed from 100% cast acrylic with fiberglass and wood reinforcement, it is designed for contractors and motivated retail buyers seeking a durable, low-maintenance alcove tub.

Features

• 100% cast acrylic with fiberglass and wood reinforcement
• Factory-installed integral wood apron skirt with single tiling flange for tile application over the front panel
• Lightly textured anti-slip bottom for safety
• Above-floor rough-in compatible
• End drain configuration (all alcove tubs)
• Leveling feet included for stable installation
• Optional removable access panel Part# 41990 available
• Upgradeable with lateral air, HydroMassage (6 or 8 jet), Chromatherapy, VIBE Sound System, and ComfortWarm

Specifications

• Dimensions: 71 7/8 in. L x 34 in. W x 22 in. H
• Immersion depth: 14 1/2 in.
• Material: 100% cast acrylic with fiberglass and wood reinforcement
• Color: White
• Drain location: Left-hand drain SKU 41435.02010; Right-hand drain SKU 41436.02010
• Flange type: Factory-installed integral wood apron skirt with single tiling flange
• Weight: Approximately 120 lbs (dry)

Fit & Compatibility

• Requires a minimum alcove rough-in of 72 x 34 in.
• Verify your alcove width — 34 in. rough-in required
• Left-hand drain (41435.02010): drain on the left when standing outside the tub facing it
• Right-hand drain (41436.02010): drain on the right when standing outside the tub facing it
• Verify minimum doorway opening of 32 in. for delivery access
• Flange type: Factory-installed integral wood apron skirt with single tiling flange

Installation Requirements

• Leveling feet must contact the subfloor evenly on all points before securing
• Optional removable access panel (Part# 41990) recommended if jetting upgrades are installed
• Acrylic surface: use non-abrasive cleaners only to avoid scratching
• No electrical required for standard tub; lateral air or HydroMassage upgrades require a dedicated 15 amp GFI breaker

Shipping

• Ships LTL freight from Langley, BC
• Wooden crating required — boxing fee applies
• Liftgate and residential delivery surcharges apply where required
• Freight quoted per order — contact us before purchasing

Warranty & Returns

• Residential: 10-year limited warranty against manufacturer's defects from date of purchase
• Applies to original purchaser with proof of purchase from an authorized Acritec dealer
• Acritec will repair, replace, or refund at their discretion up to the original purchase price — does not include transport, removal, or reinstallation costs
• Not covered: shipping or handling damage, misuse, improper installation, alterations, freezing, chemical corrosion, improper water chemistry, normal wear and tear, colour fading
• Inspect on delivery — all freight damage must be reported to the carrier immediately; installing a damaged product voids the warranty
• Manufacturer's defects must be reported to Acritec before installation
• To submit a claim: email RGA@acritec.com with proof of purchase, model number, description of defect, and photos
• Returns: These are large freight items shipped to order — no returns for change of mind or incompatibility with existing space. Contact us before purchasing if you have questions about fit.

Documents

• Specification Sheet
• Alcove Installation Guide
